Z Profiles
High-performance Z-section profiles for demanding structural applications. Greater depth and moment capacity for challenging conditions.

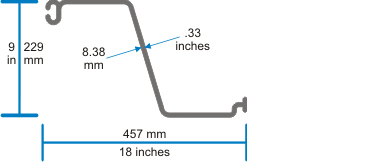

TW70
18″ wide × 9″ deep × 0.330″ wall · 5.95 lbs/ft
Entry-level Z profile with significantly greater structural depth than box profiles. Excellent for taller walls.
View Specs + Data Sheet →
TW85
18″ wide × 10″ deep × 0.440″ wall · 8.33 lbs/ft
Heavy-duty Z profile for high-load applications including flood walls, large-scale erosion control, and commercial projects.
View Specs + Data Sheet →
TW95
18″ wide × 12″ deep × 0.460″ wall · 9.0 lbs/ft
The highest-capacity Tidewall profile. Maximum allowable moment of 20,052 ft-lbs/ft for the most demanding structural requirements.
View Specs + Data Sheet →
